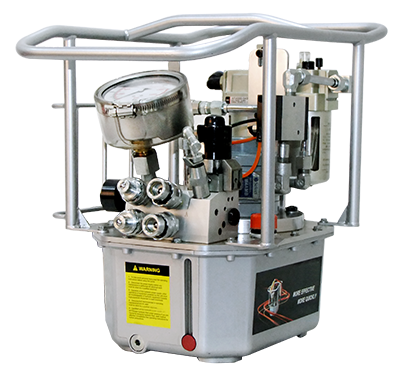

4VN for special pump, hydraulic wrench assembly integrated way: by the oil pump, control valve, fuel tanks, pneumatic motor, cooler, such as instrument of a kind of independent complete hydraulic device, has small volume, light weight, simple structure, operating the French version, all kinds of high pressure, etc. Pump for high, bottom pressure oil pump simultaneously supply, can obtain the larger output oil quantity. When high pressure, the offset pump is automatically empty back to oil by unloading overflow valve and can reduce the power consumption, and (A) the oil pressure can be adjusted by 70~ 700bar.
CONTACT US
Variable pressure adjustment between 1000~10000 psi
Designed for continuous operation
| Type | 4VN-2 | 4VN-4 |
| Working pressure | 70 MPa | 70 MPa |
| Drive | Air | Air |
| Air pressure | ≥3.4 m3/min | ≥3.4 m3/min |
| Power | 4.0 HP | 4.0 HP |
| Tank capacity | 5.5 L | 5.5 L |
| Flow rate | 10-2.2-1.1 L/min | 10-2.2-1.1 L/min |
| Oil cooler | Yes | Yes |
| Weight | 19 Kg | 21 Kg |
| Pil outputs | 4×1/4" NPT | 8×1/4" NPT |
|
Air in |
4~8 bar | 4~8 bar |
| L×W×H (mm) | 442×282×377 | 460×282×377 |
- ?Compact there-stage pump
- ?The Single valve block can be replaced by component FP-4,thereby allowing 2 or 4 tools to be driven simultaneously
- Three stage with air drive
- Supporting continuous operation with steel frame
- 100mm diameter gauge ,aluminium oil tank with oil level indicator
- Variable pressure adjustment between 1000~10000 psi
- Designed for continuous operation
