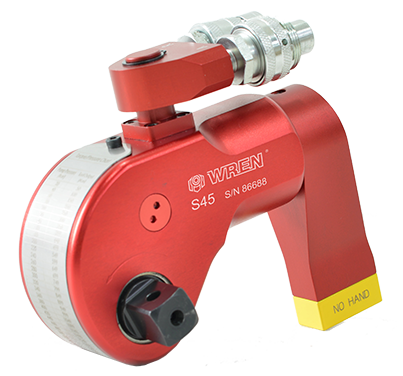

S series Square Drive Torque Wrench

? ? S configured with high technology. ideal for long-term usage by means of aluminum-titanium design. Besides having calibration service and support WREN S is one of the important brands that can accomplish big missions even its small body.Almost every tightening & loosening problems can be accomplished with these series that have a torque capacity up to 3.6992 Nm. WREN serves a wide range accessory for S series. These products which are designed for serving true resolutions, entitled with TUV seal result of an effort with appropriate directives.

CONTACT US

Product characteristics

- The 360 degree swivel is free to operation with no space limitation.
- The reaction arm with 360 degree trimming style allows placing in any support point.

Operation manual

Click download

Specifications

Download parameter table

Product selection form


Technical Data

model

Torque

(N.m)

Bolt size

(M)

Square drive

inches

Weight

(Kg)

Sizes
L1 L2 H1 H2 H3 H4 R
S17 172~1727 16~36 3/4 " 2 129 167 51 73 90 131 25
S45 452~4529 22~48 1 " 4.6 167 218 68 98 121 170 34
S100 1006~10064 30~64 1-1/2 " 10 223 293 92 135 163 211 46
S150 1497~14974 36~72 1-1/2 " 14.8 264 323 100 141 177 225 50
S370 3699~36992 48~100 2-1/2 " 32.5 329 432 137 104 240 288 66

technical data

- 700 bar maximum working pressure;Repeat accuracy ±3%.

- 5 different model from 1727-36992N.m

- 360° multi-positional swivel quick release couplings

- Working with the high resistance sockets, above more size of screw

- 360° Adijustable reaction arm with safely lock feature, can be used without reaction arm

- High resistance with aluminum-titanium and light body

- Replaceable square drive adapters
