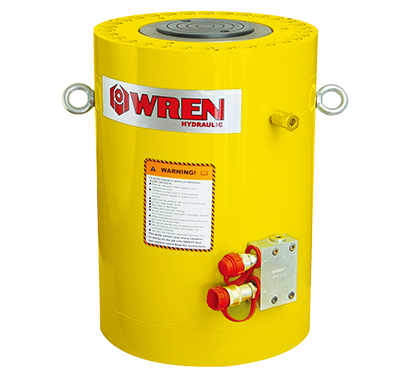

CLRG Series Double-Acting High Tonnage Cylinder

CLRG Series Double-Acting High Tonnage Cylinder

Capacity: ?10~1000 Ton

Stroke: ?50~305 mm

Maximum Operating Pressure: ?700 Bar

CONTACT US

Product characteristics

Integral stop ring provides piston blow-out protection
Double-acting for positive retraction
Baked enamel outside finish and plated pistons provide superior corrosion resistance

Operation manual

Click download

Specifications

Download parameter table

Product selection form

CLRG Series Selection Chart

Capacity

(Ton)

Stroke

(mm)

Model

Min Height

(mm)

Outside

Diameter

(mm)

Effective?Area

(cm2)

Oil Capacity

(cm3)

Saddle

Diameter

(mm)

Weight

(Kg)

Push Pull Push
 Pull Push Pull
10

4.1

254 CLR1010 409 76 14.5 5.9 368 149 33 12
10 4.1 305 CLR1012 457 76 14.5 5.9 442 180 33 14
50 22.6 150 CLR506 325 127 70.8 32.3 1062 484 70 30
50 22.6 300 CLR5012 475 127 70.8 32.3 2124 969 70 52
100 44 50 CLR1002 182 188 132.7 61.9 664 310 95 27
100 44 100 CLR1004 232 188 132.7 61.9 1327 619 95 33
100 44 150 CLR1006 282 188 132.7 61.9 1991 929 95 37
100 44 200 CLR1008 332 188 132.7 61.9 2654 1238 95 44
100 44 250 CLR10010 382 188 132.7 61.9 3318 1548 95 50
100 44 300 CLR10012 432 188 132.7 61.9 3981 1857 95 57
150 67.9 50 CLR1502 196 216 201 97 1005 485 115 47
150 67.9 100 CLR1504 246 216 201 97 2010 970 115 57
150 67.9 150 CLR1506 296 216 201 97 3015 1455 115 67
150 67.9 200 CLR1508 346 216 201 97 4020 1940 115 77
150 67.9 250 CLR15010 396 216 201 97 5025 2425 115 87
150 67.9 300 CLR15012 446 216 201 97 6030 2910 115 97
200 93 50 CLR2002 235 242 265.9 133.1 1329 665 130 67
200 93 150 CLR2006 335 242 265.9 133.1 3988 1996 130 92
200 93 250 CLR20010 435 242 265.9 133.1 6647 3327 130 117
250 107 50 CLR2502 236 288 366.4 152.6 1832 763 165 105
250 107 150 CLR2506 336 288 366.4 152.6 5496 2289 165 141
250 107 250 CLR25010 436 288 366.4 152.6 9160 3815 165 176
300 121 50 CLR3002 350 325 456.2 172.6 2281 863 190 204
300 121 150 CLR3006 412 325 456.2 172.6 6843 2589 190 252
300 121 250 CLR30010 512 325 456.2 172.6 11405 4315 190 299
400 138 50 CLR4002 370 367 559.9 196.8 2799 984 215 281
400 138 150 CLR4006 470 367 559.9 196.8 8399 2952 215 342
400 138 250 CLR40010 570 367 559.9 196.8 13998 4920 215 405
500 168 50 CLR5002 400 405 730.6 239.7 3653 1198 250 411
500 168 150 CLR5006 500 405 730.6 239.7 10959 3595 250 493
500 168 250 CLR50010 600 405 730.6 239.7 18265 5992 250 575
600 207 50 CLR6002 445 450 855.3 295.4 4277 1477 267 494
600 207 150 CLR6006 545 450 855.3 295.4 12830 4431 267 586
600 207 250 CLR60010 645 450 855.3 295.4 21383 7385 267 678
800 252 50 CLR8002 695 515 1164 360 5820 1800 320 759
800 252 150 CLR8006 595 515 1164 360 17460 5400 320 885
800 252 250 CLR80010 695 515 1164 360 29100 9000 320 1019
1000 380 50 CLR10002 535 580 1465.7 541.7 7328 2708 342 1012
1000 380 150 CLR10006 635 580 1465.7 541.7 21985 8125 342 1168
1000 380 250 CLR100010 735 580 1465.7 541.7 36418 13543 342 1325

technical data

- Safety valve in retract side of cylinder helps to prevent damage in case of accidental over-pressurization

- Interchangeable, hardened grooved saddles are standard

- Plunger wiper reduces contamination, extending cylinder life
